Injection molding, from rapid tooling to production.

Factory-direct mold design, tooling, trial, and production for thermoplastic and LSR parts, including multi-cavity, overmolding, two-shot, and insert molding, backed by DFM, Moldflow analysis, and process validation.

Tooling and molding routes for each production stage

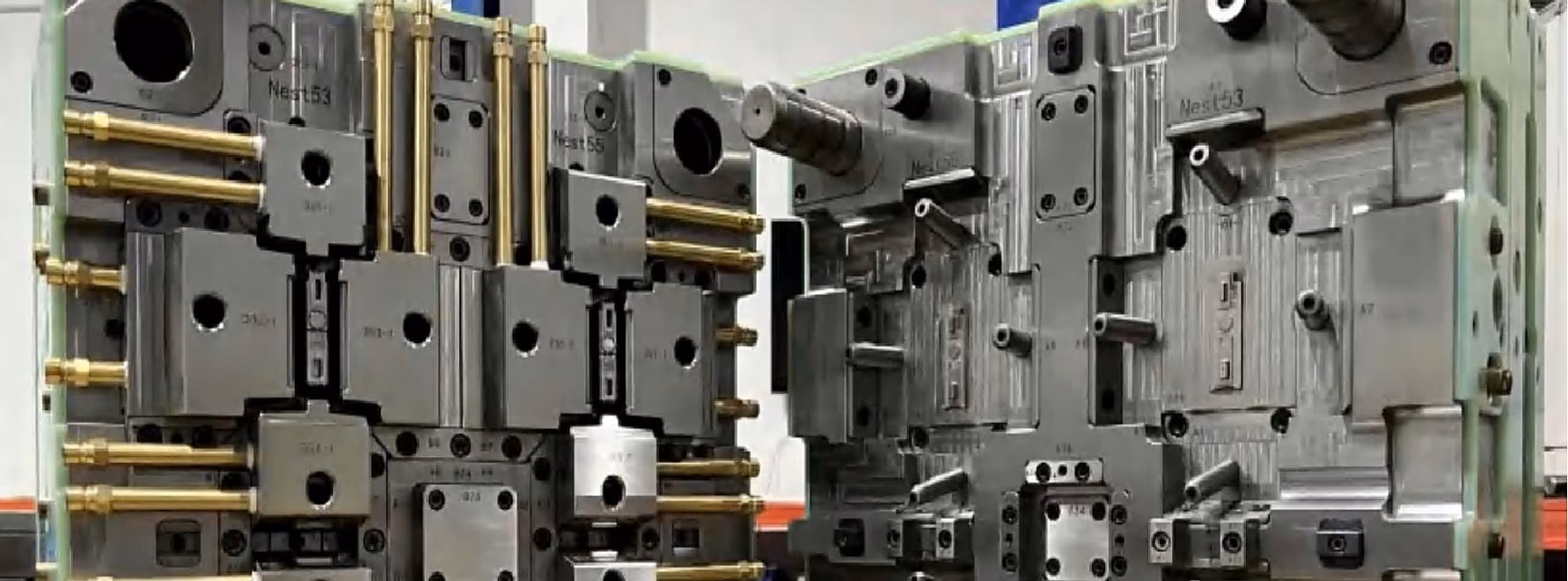

Open injection mold photographed in a production workshop with both tool halves visible

Rapid Tooling & Bridge Production

Aluminum 7075 and P20 tooling supports functional prototypes, pilot builds, bridge quantities, and market-launch production using the intended production resin. T1 samples can be delivered in as fast as 15 days.

  • T1 in as Fast as 15 Days
  • Production Materials
  • Bridge Quantities
Open multi-cavity production mold showing precision-machined cavity and core plates

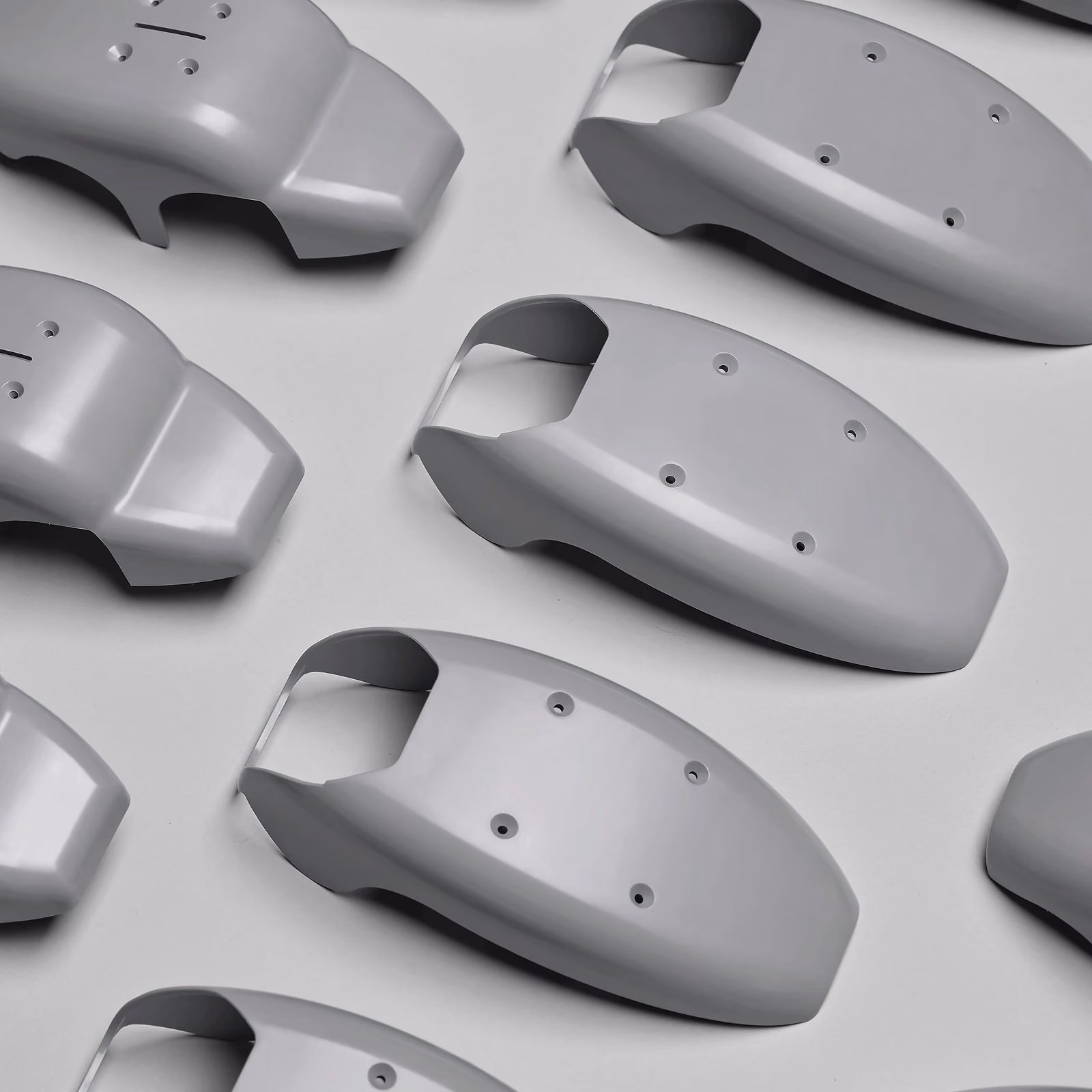

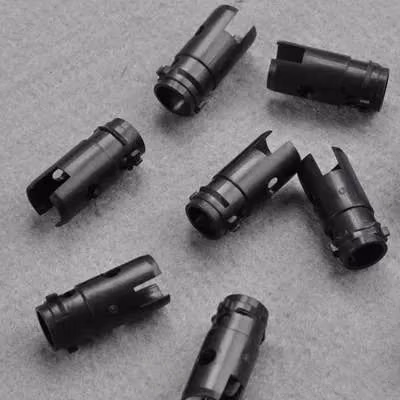

Production Tooling & Multi-Cavity Molds

Hardened-steel tooling, multi-cavity layouts, family molds, and hot-runner systems support repeat production and high-volume programs. Tool steel, cavity count, cooling, and automation are selected around part geometry and forecast demand.

  • Hardened Tool Steel
  • Multi-Cavity Molds
  • High-Volume Production

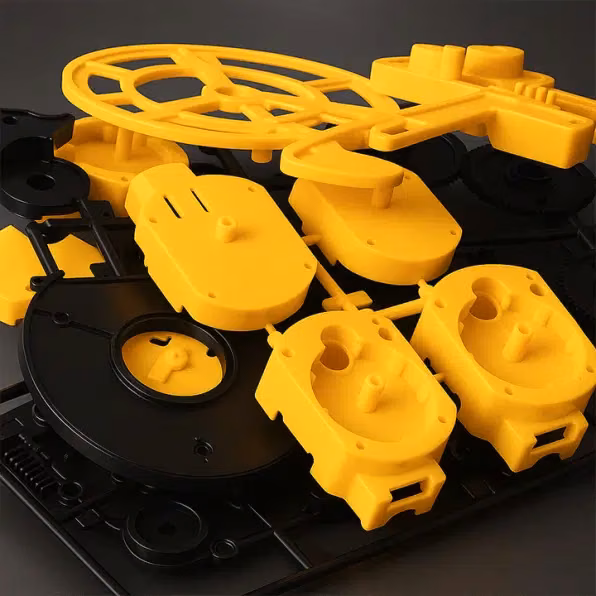

Yellow and black multi-material molded components arranged on a dark workshop surface

Overmolding & Two-Shot Molding

Rigid substrates can be combined with TPE or TPU for grip, sealing, impact protection, and vibration control. Two-shot molding also integrates different colors or compatible materials within one controlled molding sequence.

  • Soft-Touch Surfaces
  • Material Integration
  • Two-Shot Molding
Four complete red molded components with integrated metal insert features on a warm neutral background

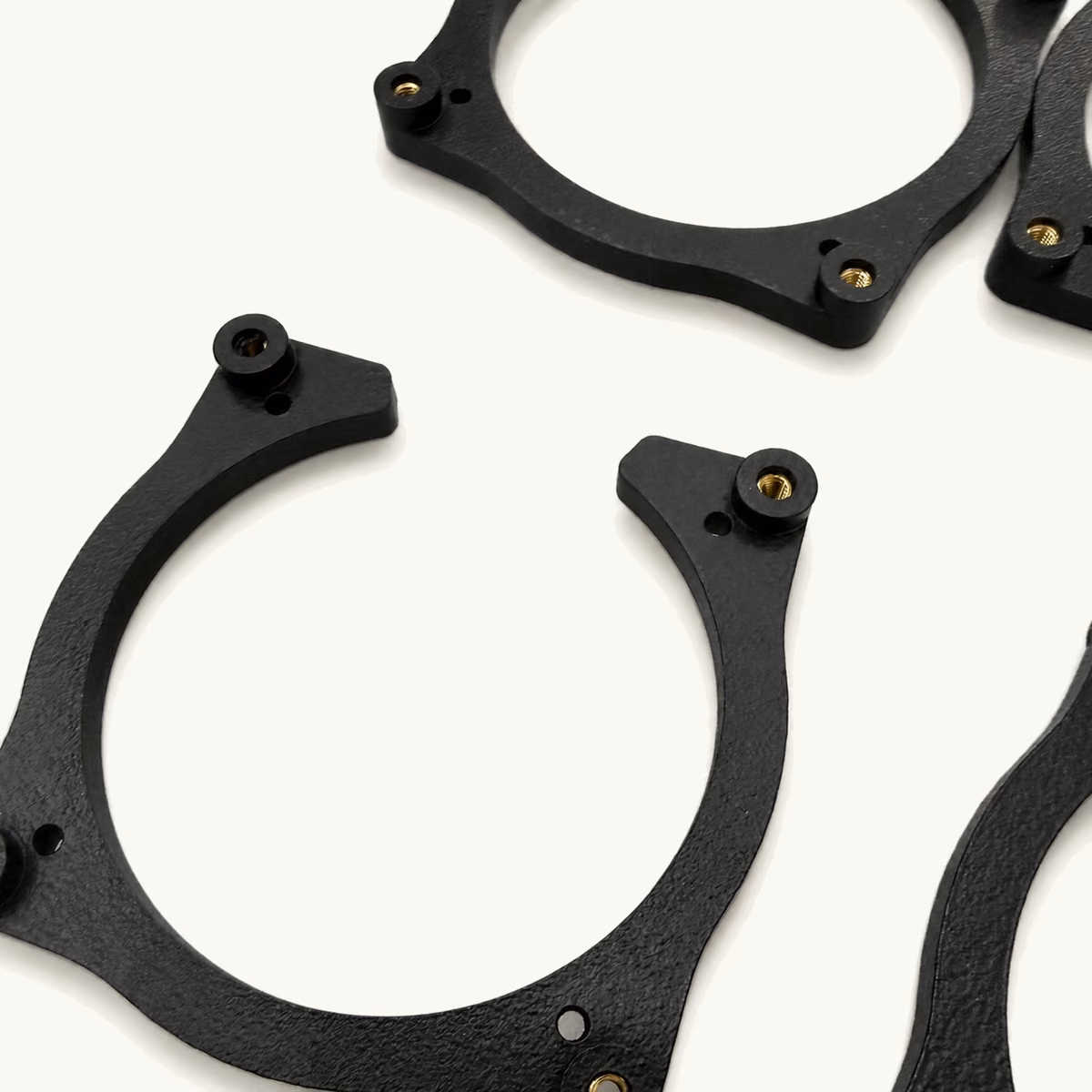

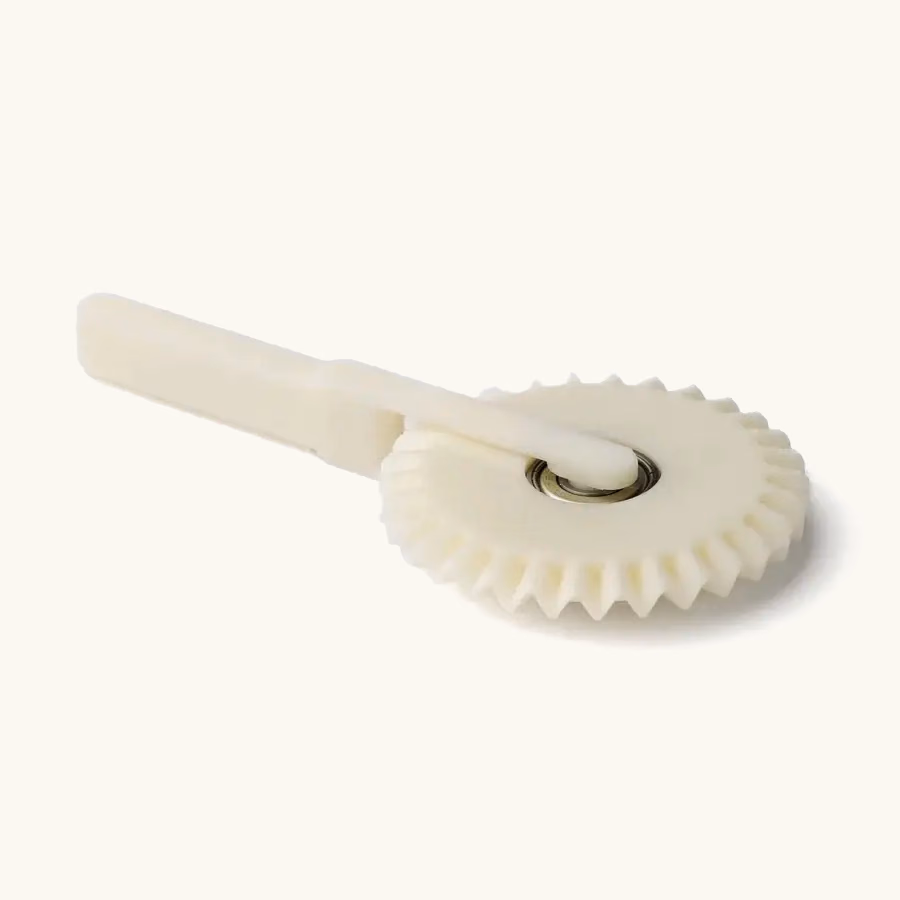

Insert Molding

Threaded inserts, pins, bushings, electrical contacts, and other prepared components are positioned in the mold and encapsulated during injection, reducing downstream assembly while creating durable mechanical or electrical interfaces.

  • Threaded Inserts
  • Electrical Contacts
  • Reduced Assembly
Complete purple and translucent square LSR sealing components with raised circular openings on a warm off-white background

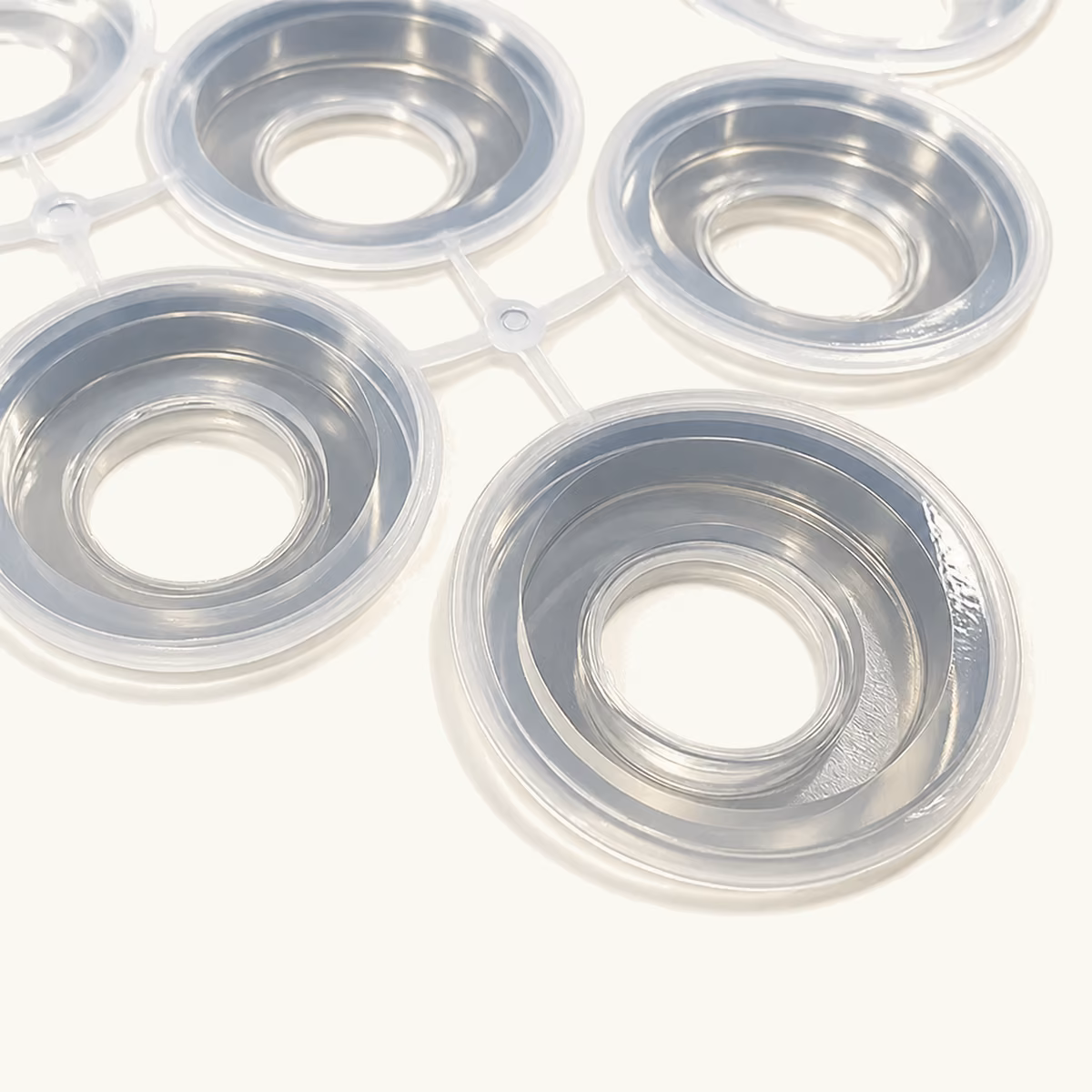

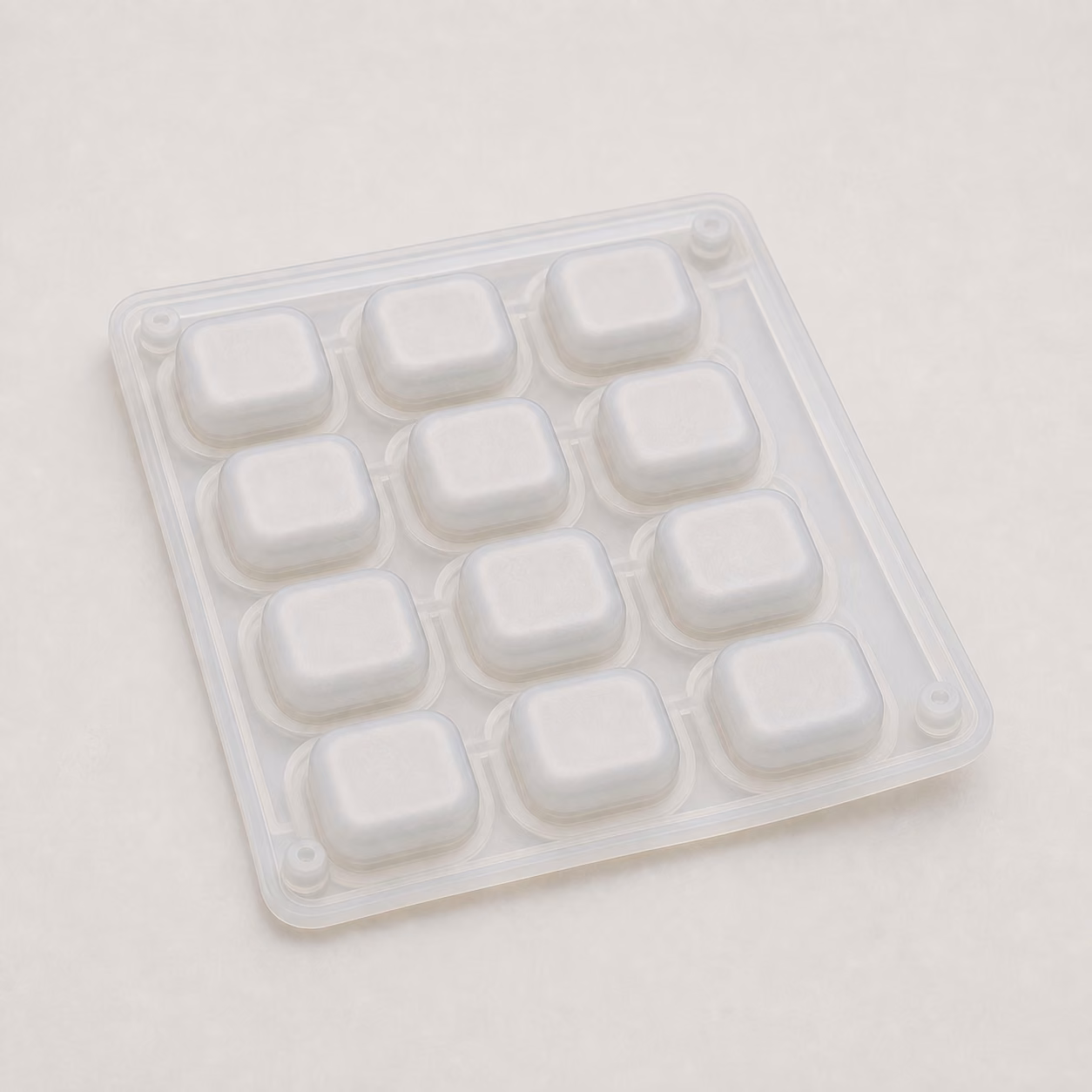

Liquid Silicone Rubber (LSR) Molding

Metered two-part liquid silicone is mixed, injected into a heated mold, and cured into flexible parts with stable performance across temperature and chemical exposure. It is suited to seals, gaskets, membranes, medical components, and soft-touch interfaces.

  • Flexible Seals
  • Heat & Chemical Resistance
  • Medical & Consumer Parts

Have a project ready for review?

Get a Quote

Tooling and production support across the mold lifecycle

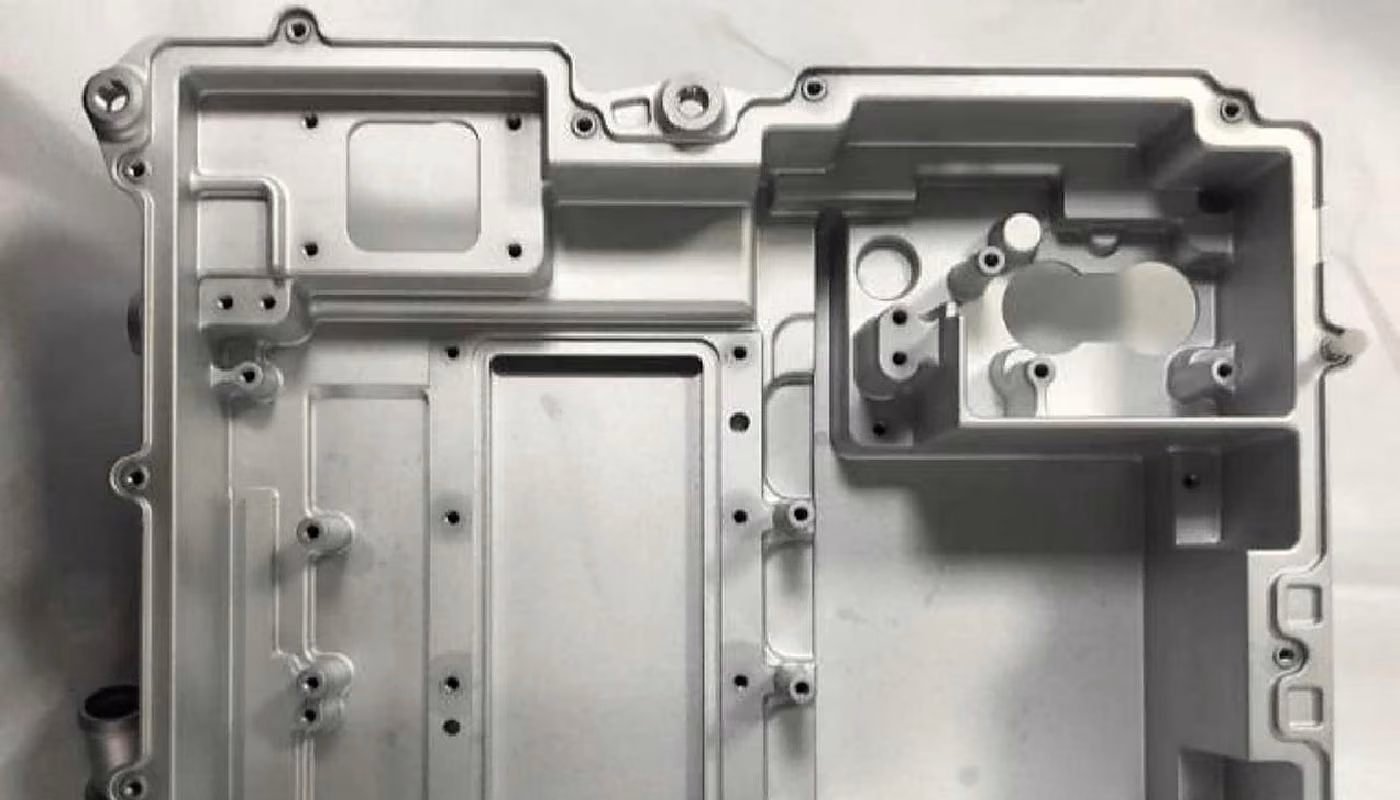

Close view of a precision-machined mold insert housing showing cavities, bosses, and mounting features

Engineering Review Before Tooling

DFM and Moldflow analysis are used to review how the part will fill, pack, cool, shrink, and eject before tooling begins. The review connects part design decisions with mold construction and production risk.

  • Gate, runner, cooling, draft, wall thickness, and parting-line review
  • Recommendations for sink, weld lines, warpage, and trapped air

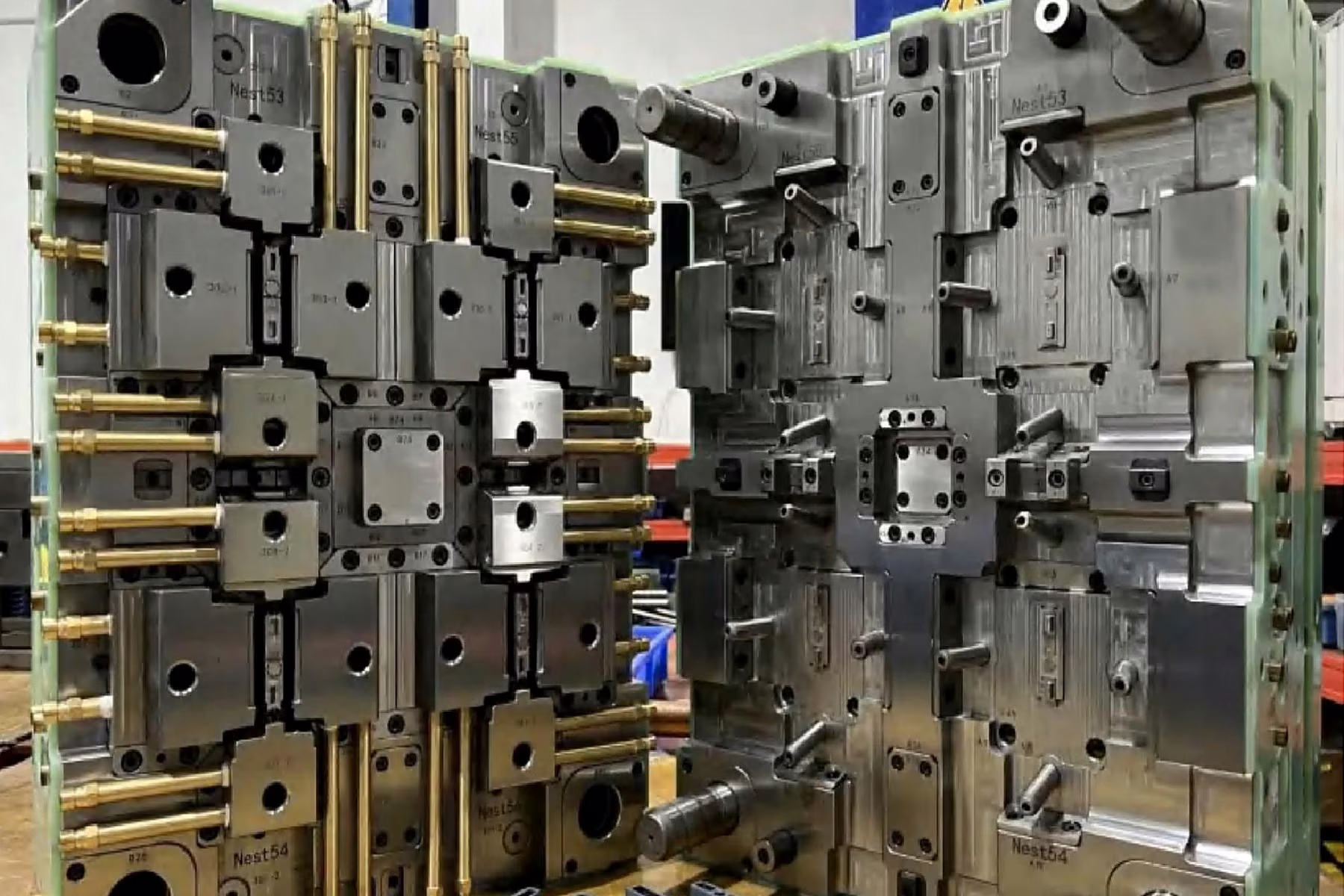

Open injection mold in a workshop showing accessible cavity, core, and tooling hardware

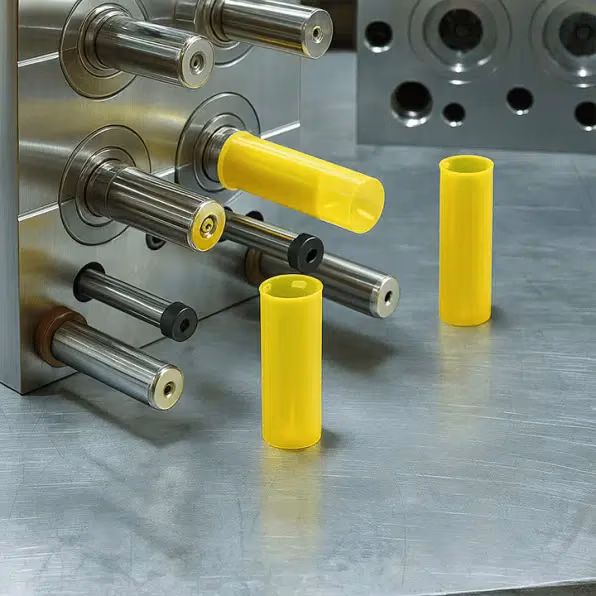

In-House Tooling and Mold Revisions

Mold design, CNC machining, EDM, fitting, assembly, trials, revisions, and maintenance are coordinated within our tooling facility, keeping engineering decisions close to the team responsible for the mold.

  • Direct communication with tooling engineers
  • T1, T2, steel-safe revisions, and production maintenance
Molded components arranged in a blue inspection tray beside a production measurement fixture

Validated Process and Inspection

Scientific molding principles establish a documented processing window for fill, pack, cooling, and cycle conditions. Inspection then verifies drawing-defined dimensions and agreed quality requirements before release.

  • CMM, optical inspection, FAI, and dimensional reports available
  • ISO 9001-certified quality system and PPAP support

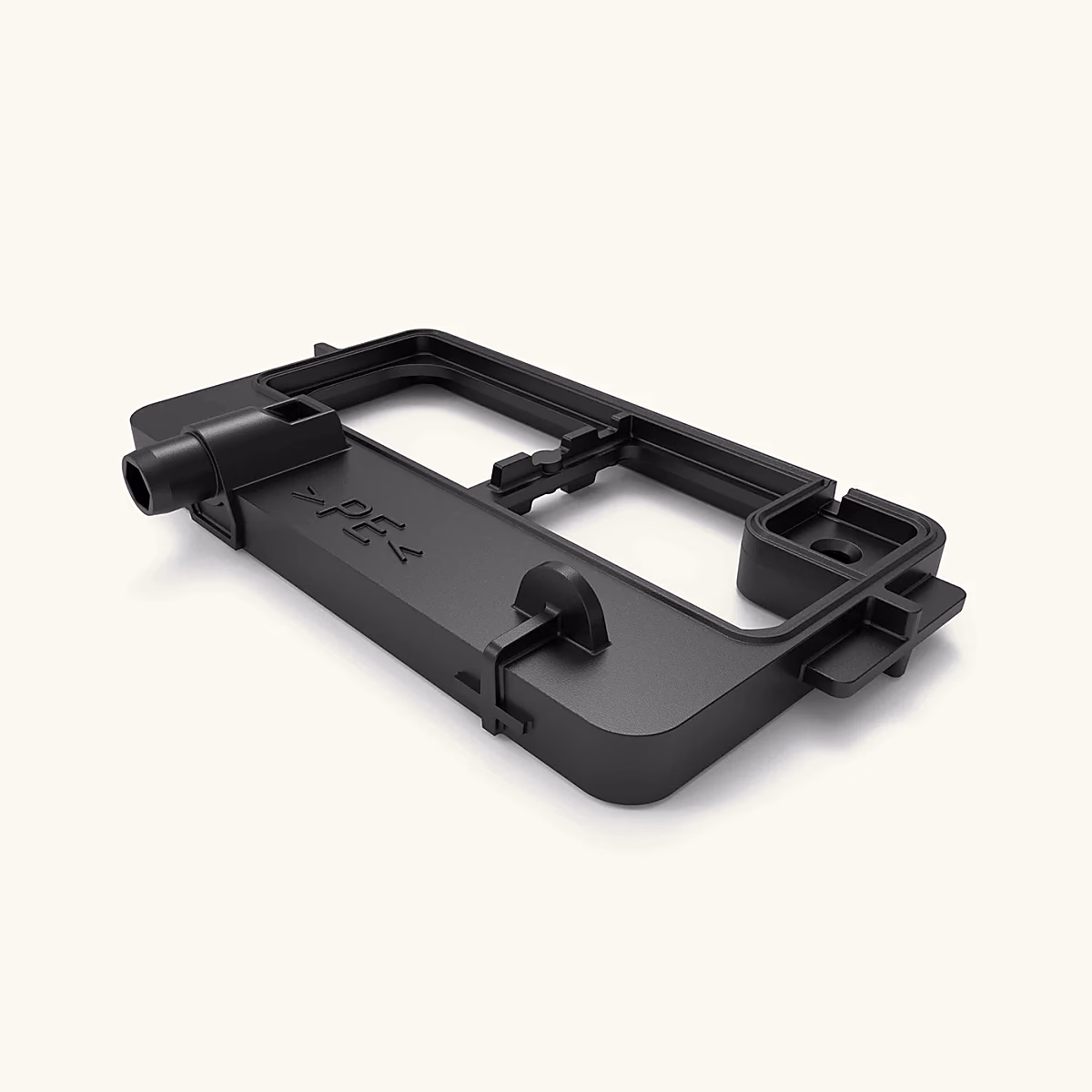

Tooling and process controls for repeatable molded parts.

Resin behavior, wall thickness, draft, gate location, cooling, shrinkage, and ejection all influence the finished part. Critical requirements are reviewed before tooling and carried through mold trials, process validation, and production inspection.

MOLDING CAPABILITIES

Injection molding specifications

  • Injection molding presses from 50 to 1,000+ tons of clamping force
  • Critical molded-part tolerances down to ±0.05 mm when specified and approved
  • Tooling materials including Aluminum 7075, P20, NAK80, H13, and S136
  • Tool construction aligned with SPI mold classifications from Class 101 to Class 105
  • Single-cavity, multi-cavity, family-mold, and hot-runner configurations
  • Overmolding, two-shot molding, insert molding, and LSR molding available
  • FAI, dimensional reports, material certificates, CoC, and PPAP documentation available

Injection molding materials and mold finishes

Thermoplastics, Elastomers & LSR

Resins are selected around strength, impact, flexibility, temperature, chemical exposure, appearance, regulatory requirements, shrinkage, and production volume.

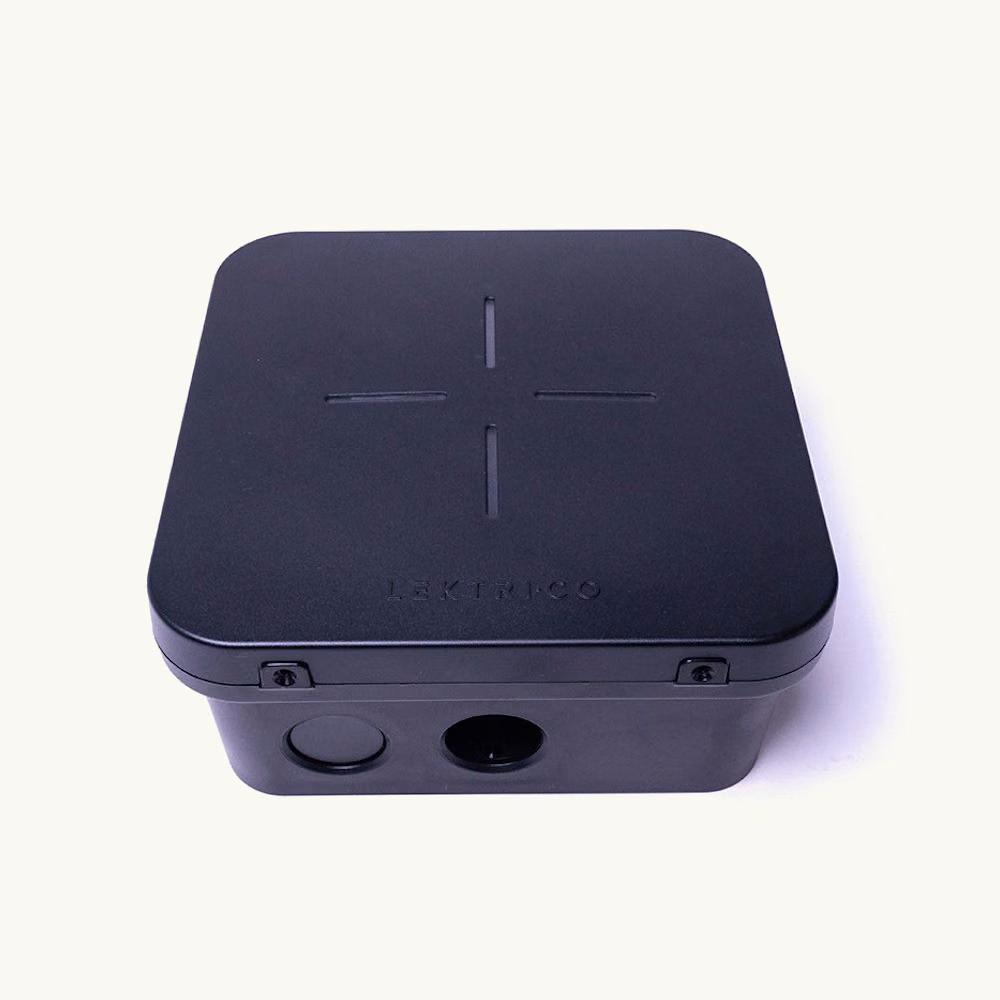

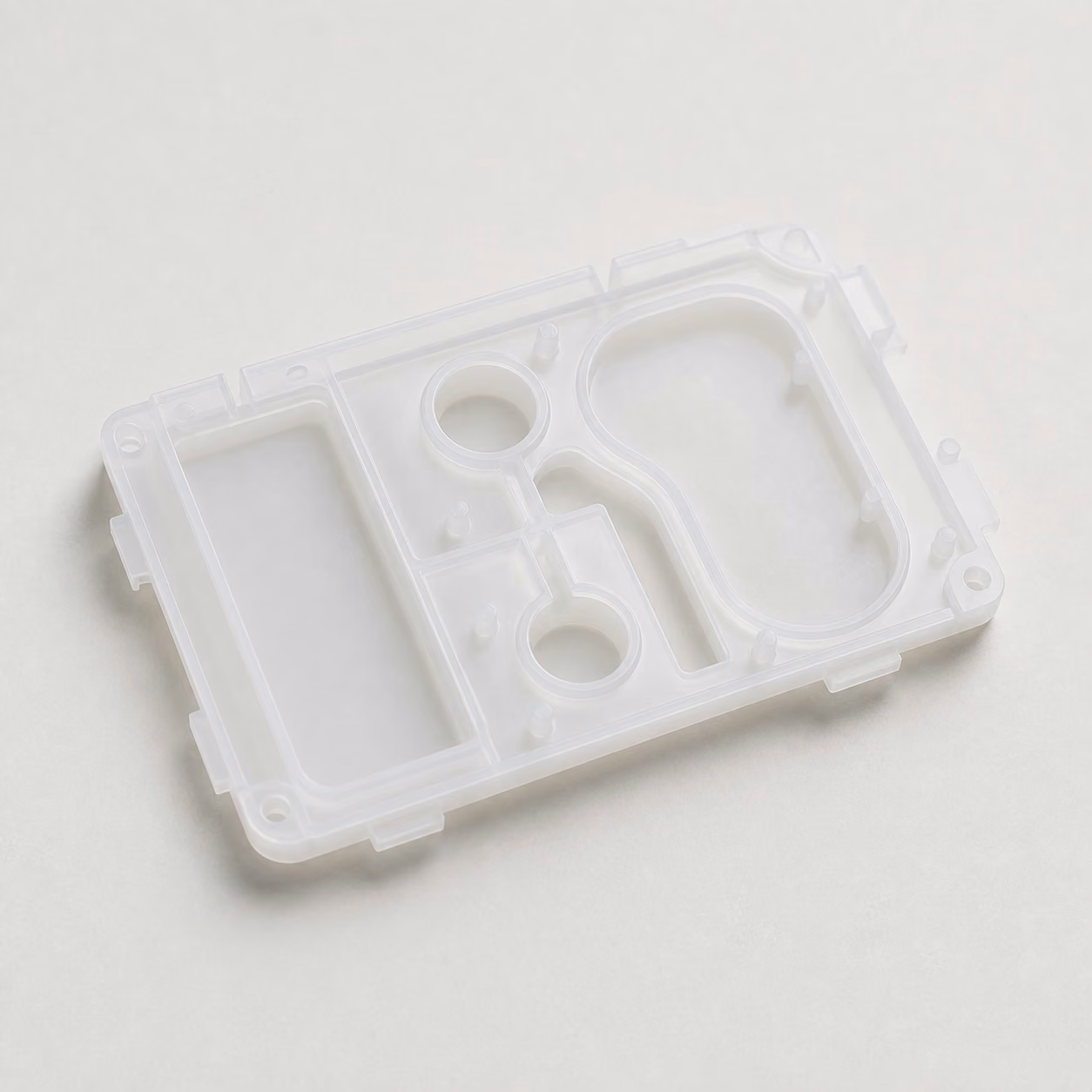

General-Purpose Resins
ABS · Polypropylene · PC/ABS

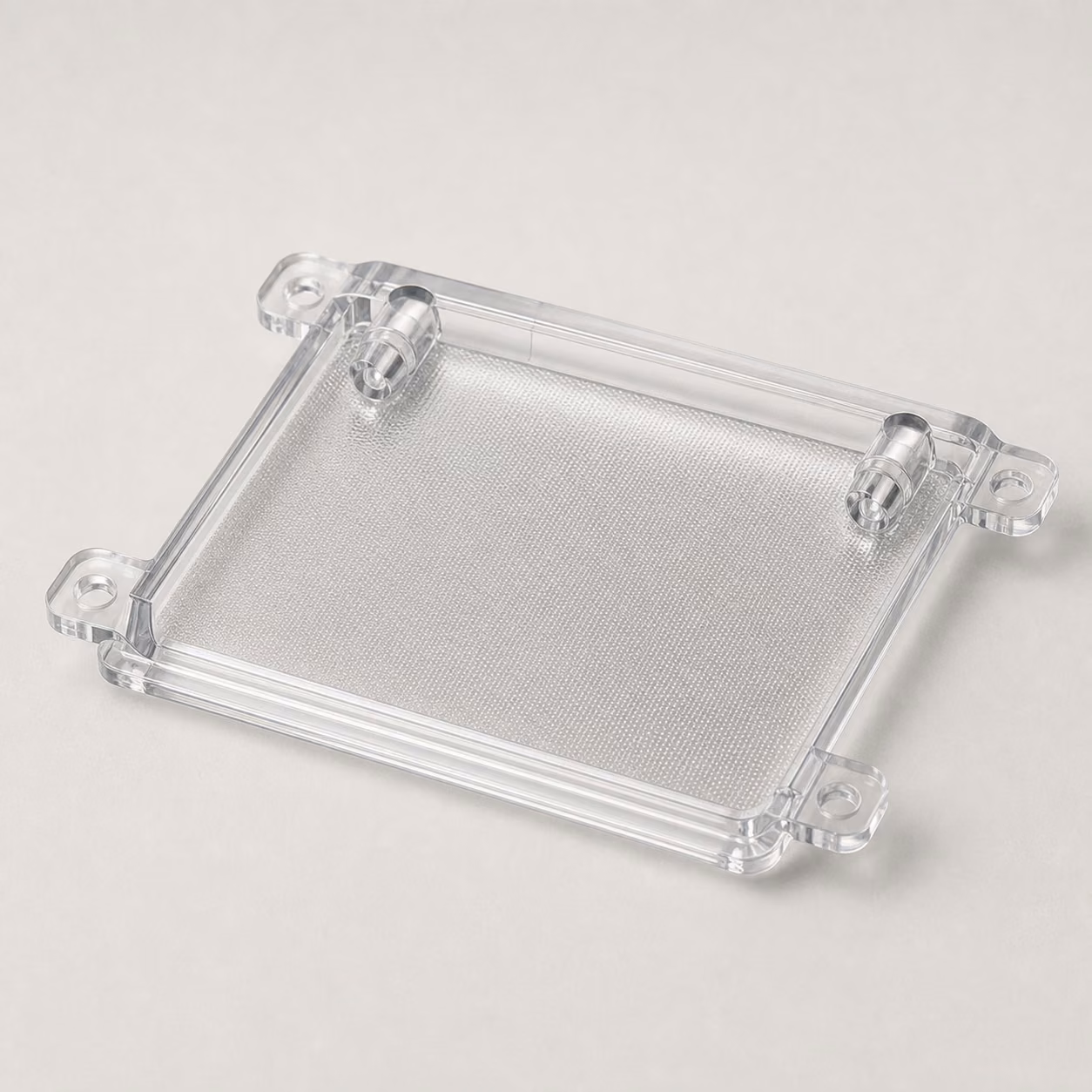

Transparent & Cosmetic Resins
Clear Polycarbonate · Surlyn

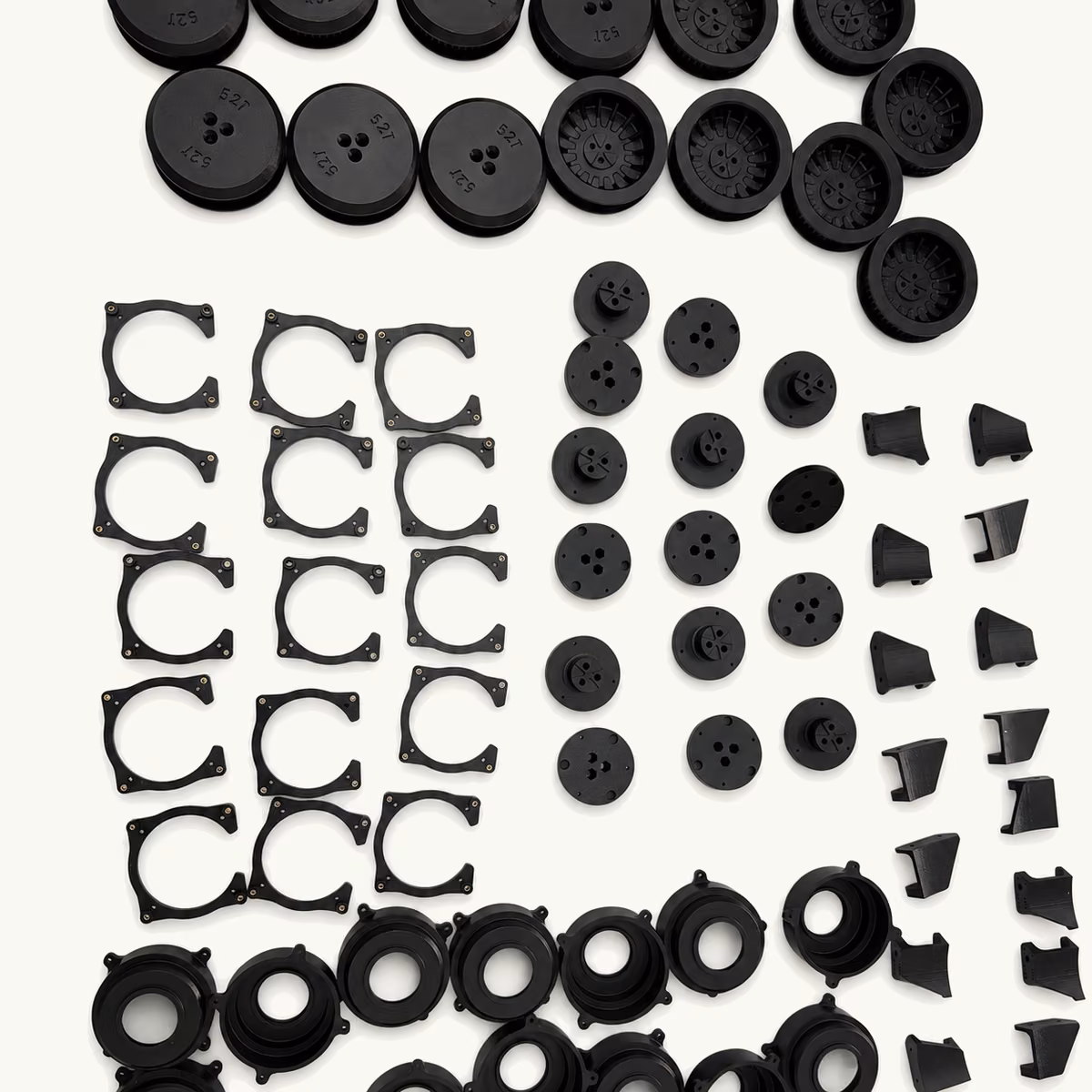

Engineering Plastics
POM (Delrin) · PA6/PA66 · PBT
High-Temperature Polymers
PEEK · PEI (ULTEM™) · PPS
Elastomers & Silicone
TPE · TPU · Liquid Silicone Rubber
Reinforced & Specialty Grades
Glass Fiber 10–50% · Carbon Fiber · Flame-Retardant · UV-Stabilized
Explore All Materials

Mold Polishes & Textures

The specified cavity finish is transferred to the molded surface. Draft, material, color, texture depth, gate position, and cosmetic boundaries are reviewed together before tooling.

SPI Diamond Polish
A-1 · A-2 · A-3
SPI Semi-Gloss
B-1 · B-2 · B-3
SPI Matte
C-1 · C-2 · C-3
SPI Textured
D-1 · D-2 · D-3
VDI 3400 EDM Finishes
VDI 12 · VDI 24 · VDI 36

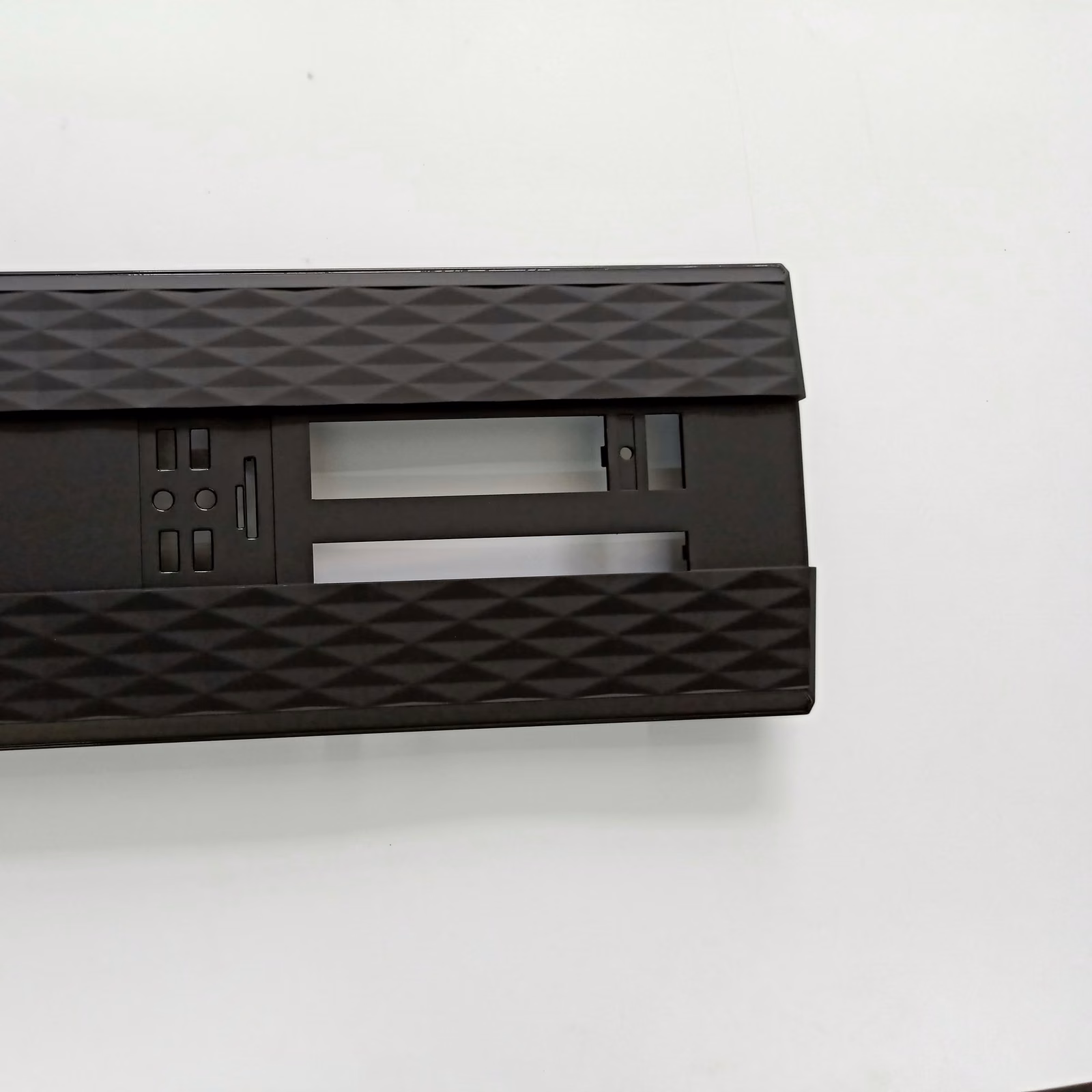

Mold-Tech Textures
Fine Grain · Leather · Wood Grain · Geometric Patterns
Explore All Finishes

Have a project ready for review?

Get a Quote

Injection molding questions, answered

Provide a STEP, STP, IGES, or X_T model for the part geometry and a 2D PDF drawing for critical dimensions, GD&T, cosmetic zones, textures, threads, inserts, and inspection requirements. Also include the intended resin, color, expected order quantity, annual volume, target date, and any required quality documentation.
